原理principle:

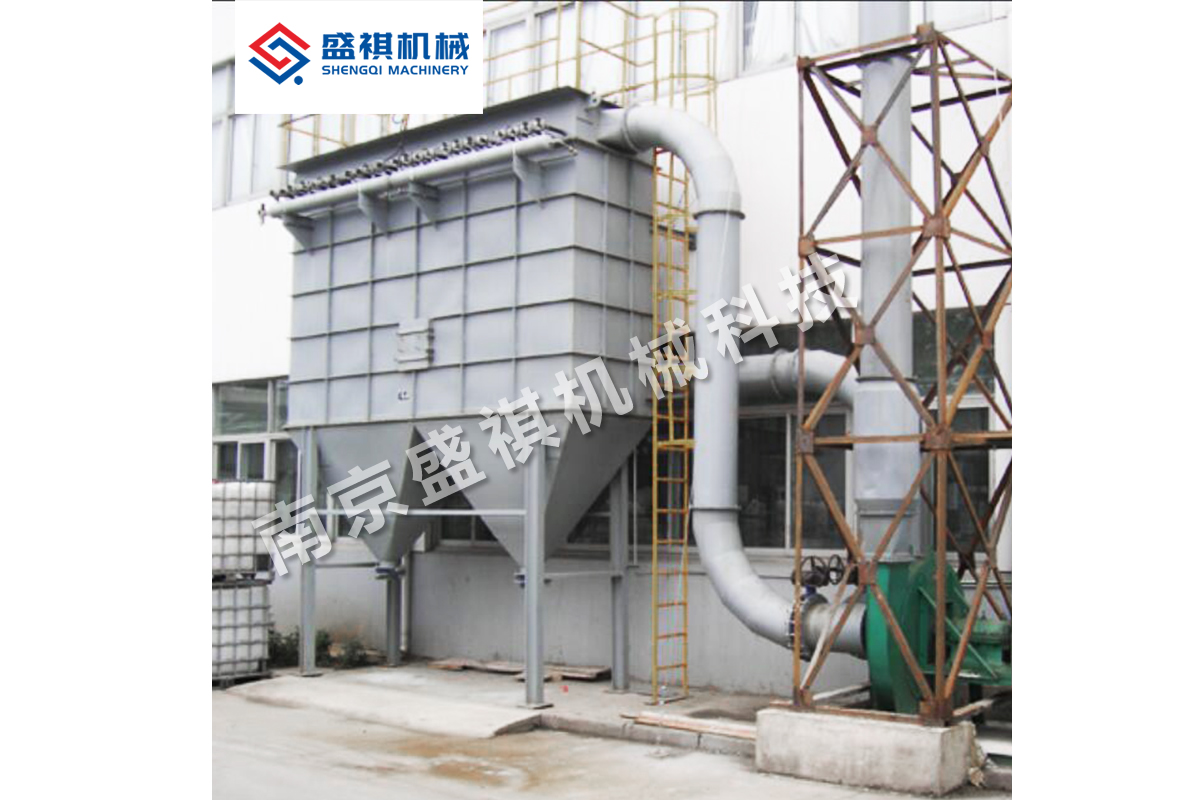

除尘器设备工作时,含尘气体由进风口进入灰斗,由于气体体积的急速膨胀,一部分较粗的尘粒受惯性或自然沉降等原因落入灰斗,其余大部分尘粒随气流上升进入袋室,经滤芯过滤后,尘粒被滞留在滤芯的外侧,净化后的气体有滤芯内部进入上箱体,再由阀板孔、排风口排入大气,从而达到除尘的目的。

When the dust collector equipment is working, the dust-containing gas enters the ash hopper from the air inlet. Due to the rapid expansion of the gas volume, a part of the coarser dust particles fall into the ash bucket due to inertia or natural settlement, and most of the other dust particles rise with the airflow. The bag chamber is filtered by the filter element, and the dust particles are retained on the outer side of the filter element. The purified gas has the inside of the filter element and enters the upper case body, and then is discharged into the atmosphere by the valve plate hole and the exhaust air port, thereby achieving the purpose of dust removal.

特点Features:
●本除尘器采用分室停风脉冲喷吹清灰技术,克服了常规脉冲除尘器和分室反吹除尘器的缺点,清灰能力强,除尘效率高,排放浓度低,漏风率小,能耗少,钢耗少,占地面积少,运行稳定可靠。
●集成式过滤单元,方便拆卸和过滤元件的清洗和更换。
●既可以选择滤袋,也可以选择滤芯作为过滤元件。
●本公司采用的PE烧结滤芯采用超高分子量聚乙烯烧结成型,结构紧凑、结实、质轻、能承受较高的过滤压力、无毒无味,滤芯孔径分布均匀,耐强酸、强碱、耐高温、机械性能好。
●箱体采用气密性设计,密封性好,检查门用优良的密封材料,制作过程中以煤油检漏,漏风率很低。
●进。出口风道布置紧凑,气流阻力小。
●所有过滤器出厂前都已经装配完成并经过各种测试。

●This dust collector adopts the split-air pulse pulse blowing cleaning technology to overcome the shortcomings of the conventional pulse dust collector and the compartment back-blowing dust collector. It has strong cleaning ability, high dust removal efficiency, low emission concentration, low air leakage rate and low energy consumption. The steel consumption is small, the floor space is small, and the operation is stable and reliable.
● Integrated filter unit for easy removal and cleaning and replacement of filter elements.
● You can choose either the filter bag or the filter element as the filter element.
●The PE sintered filter core used by our company is sintered by ultra-high molecular weight polyethylene. It is compact, strong, light in weight, can withstand high filtration pressure, non-toxic and tasteless, and has uniform pore size distribution. It is resistant to strong acid, alkali and high temperature. Good mechanical properties.
●The cabinet adopts airtight design, good sealing performance, excellent sealing material for inspection door, kerosene leak detection during production, and low air leakage rate.
● Enter. The outlet duct is compactly arranged and the airflow resistance is small.
●All filters have been assembled and tested in various ways before leaving the factory.
